Category: Reel lifters
4717_K24

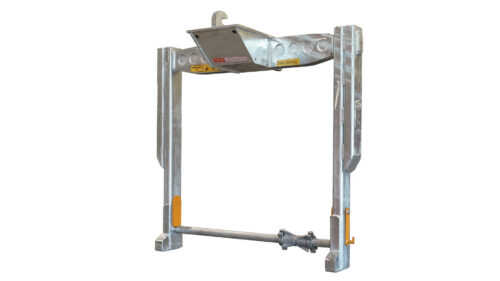

JKS reel pitchfork K24
The JKS reel pitchfork K24 is a lifting accessory developed at the customer's request for controlled reel handling. It includes a 60 mm reel axle with bearings, which is used to lift the reel onto the vehicle. Once the quick locks are fastened, pulling can begin immediately.Because the device uses the JKS LF 24 reel axle, the same reel can be handled with both the reel pitchfork and the LF 24 reel lifter without changing the axle. The pitchfork is supplied with the machine attachment of your choice, for example S60. A larger K30 model is also available.
4717

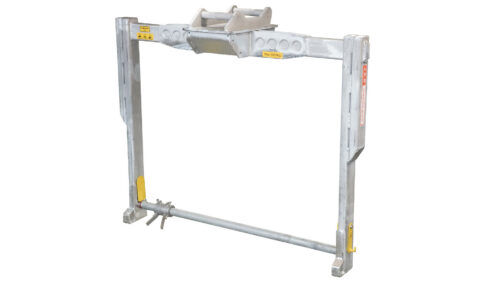

JKS reel pitchfork K30
The JKS reel pitchfork K30 is a lifting accessory developed at the customer's request for controlled reel handling. It includes a 75 mm reel axle with bearings, which is used to lift the reel onto the vehicle. Once the quick locks are fastened, pulling can begin immediately.Because the device uses the JKS LF 30 reel axle, the same reel can be handled with both the reel pitchfork and the LF 30 reel lifter without changing the axle. The pitchfork is supplied with the machine attachment of your choice, for example S60. A smaller K24 model is also available.
5549

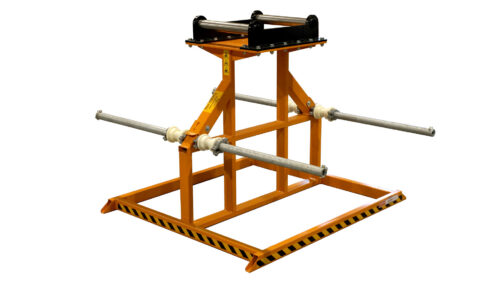

JKS FL 4000 reel lifter
The JKS FL 4000 is specially designed for handling four reels simultaneously with an excavator. This robust device has two separate hot-dip galvanized reel axles, nylon cones and locking bands that allow up to four reels to be handled at once. Thanks to the nylon cones, the reels rotate smoothly while the axle itself remains stationary.The device was developed in close cooperation with our customer to meet specific operational needs. It is CE marked and complies with European safety standards. Various machine attachments, such as S80 or NTP10, are available.
5900

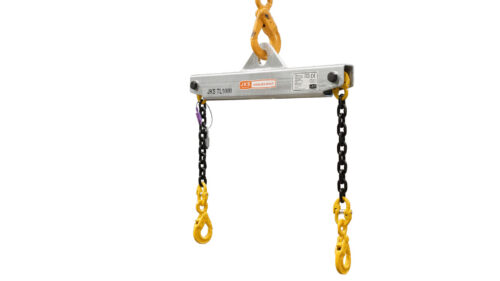

JKS TL 1000 transformer lifter
The JKS TL 1000 is a small and handy transformer lifter designed for lifting transformers. Its simple but durable construction ensures safe lifting. The lifting hooks are attached to the load and lifting can begin.The device is CE approved and part of our transformer lifter range.
2574

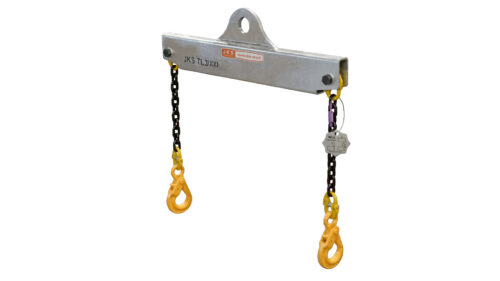

JKS TL 3000 transformer lifter
The JKS TL 3000 is a small and handy transformer lifter designed for lifting transformers. It fits between utility poles. Its simple but durable construction ensures safe lifting. The lifting hooks are attached to the load and lifting can begin.The device is CE approved.
5951

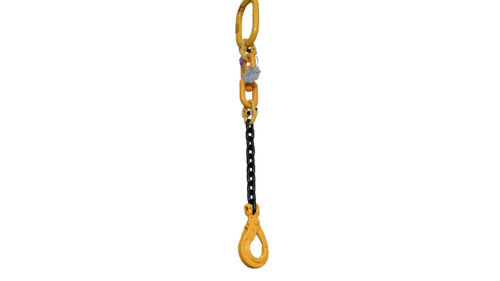

JKS HL 3000 hook lift
The JKS HL 3000 hook lift can lift loads of up to 3000 kg. The lifter is equipped with a swivel, so the hook rotates 360°. The hook is attached to the load and lifting can begin.The set includes a lifting hook, swivel and lifting chain. Like all lifting accessories, it must be inspected at least once a year — contact us to arrange the inspection service.CE-approved product.
6700

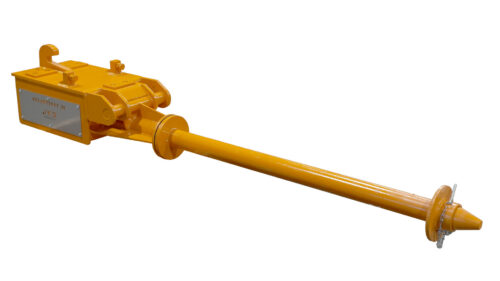

JKS reel spike 3T
The JKS reel spike 3T is an innovative and efficient device that attaches to the excavator boom. It allows material to be unwound directly from the reel easily and safely by rotating the reel. The spike is inserted through the reel openings and locked in place for a secure and reliable hold.The rotating shaft lets the reel spin smoothly, making unloading quick and efficient. The device is made of durable painted steel and is CE certified, meeting all European safety standards. Various machine attachments, such as S80 or NTP10, are available.
24010

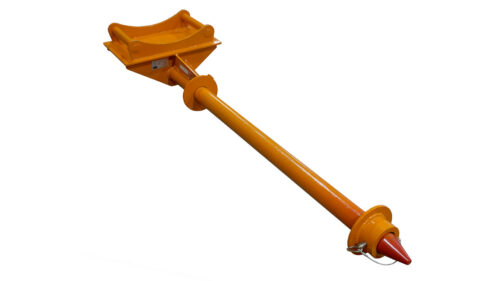

JKS reel spike DS 600
The JKS reel spike DS 600 is designed for handling reels weighing up to 600 kg. The device is mounted on the excavator boom; the spike is inserted through the reel openings and locked in place for a secure and reliable hold. The reel can be rotated conveniently and safely to unwind material directly from it.The spike is made of durable painted steel, ensuring a long service life even in demanding conditions. It is CE certified and meets European safety standards. Various machine attachments, such as S45, are available.
2243

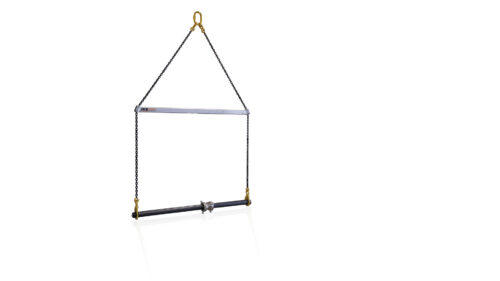

LF 16 reel lifter
The LF 16 is a light and easy-to-use reel lifter designed for handling small reels. It has a Ø50 mm reel axle with bearings and locking cones. Lifting takes place from the bearing-mounted reel axle.Thanks to the chain structure, the lifter is easy to handle and carry. The frame design is chain-saving, which extends the service life of the lifter. The sturdy hot-dip galvanized steel crossbar is durable and does not bend even under heavier use.CE-approved lifting accessory. Annual lifting equipment inspections are also available from us.
32 or 32N

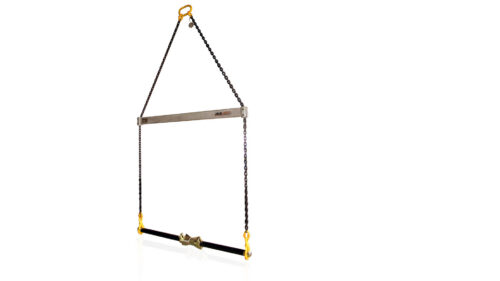

LF 24 reel lifter
The JKS LF 24 reel lifter is designed for reels up to K24 size and weighing up to 3000 kg. The bearing-mounted reel axle makes heavy lifting smooth and efficient. Thanks to the chain structure, the lifter is easy to handle and transport.The frame design saves chains, extending service life and reducing maintenance. The sturdy hot-dip galvanized crossbar does not bend even under heavy use. Shortening hooks allow the lifter to be used in lower indoor spaces and with smaller reels.Supplied with a bearing-mounted reel axle, locks and reel centering cones. CE-approved lifting accessory.
3596
LF 26 reel lifter
The LF 26 reel lifter is designed for reels weighing up to 3000 kg and measuring up to 2600 mm in diameter. Lifting takes place from the bearing-mounted reel axle. Thanks to the chain structure, the lifter is easy to handle and transport.The frame design saves chains, extending the service life of the lifter. The sturdy hot-dip galvanized steel crossbar is durable and does not bend even under heavier use. Shortening hooks allow the lifter to be used in lower indoor spaces and with smaller reels.Supplied with a bearing-mounted reel axle, steel cones and locking bands. CE-marked lifting accessory.
33 or 33N

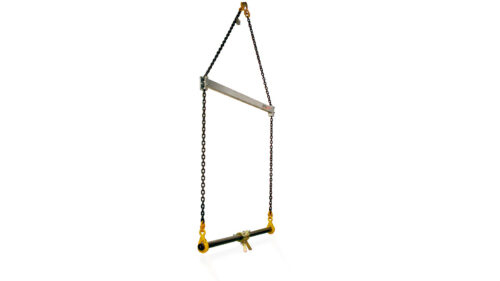

LF 30 reel lifter
The LF 30 reel lifter is stronger and more rigid than the LF 24, offering a lifting capacity of up to 6000 kg. The bearing-mounted reel axle is inserted through the reel and the lifter is attached to the axle. The frame design saves chains, extending the service life of the lifter.The sturdy hot-dip galvanized steel crossbar is very durable. Shortening hooks allow the lifter to be used in lower indoor spaces and with smaller reels. The axle can be equipped with either steel or nylon cones for reel centering.CE-approved lifting accessory.
496

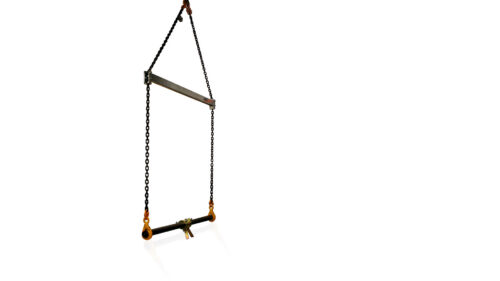

LF 32 reel lifter
The LF 32 reel lifter is engineered for demanding industrial lifting and handling tasks. It is significantly stronger and more rigid than its predecessor, the LF 30, offering increased lifting capacity and durability. This makes it an ideal choice for the safe and efficient handling of large and heavy reels.The lifter has a bearing-mounted reel axle that is inserted directly through the reel, allowing smooth rotation and reduced wear during use. The lifter is securely attached to the axle, ensuring stable and safe lifting in all operating conditions.The frame structure is designed to save chains, reducing maintenance needs and extending the service life of the lifter. The package includes a…
2657

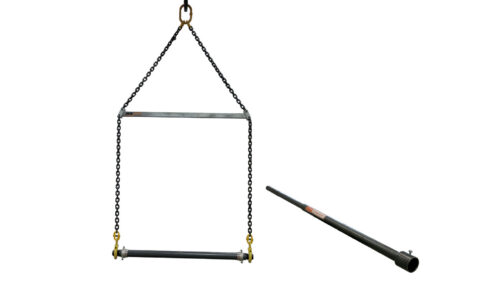

LF 38 reel lifter
The LF 38 reel lifter is an efficient and safe solution for lifting, moving and handling large cable reels. It is particularly suitable for contractors in the electrical, telecommunications and energy sectors, utility companies and cable manufacturers who need reliable equipment for handling heavy cable reels.The bearing-mounted reel axle makes it easier to rotate the reel during lifting and reduces stress on the structure. The chain-based frame distributes the load evenly, extending service life and improving operational safety. Shortening hooks allow the lifter to be adapted to different reel sizes.Supplied with a reel axle, steel chains, locking bands, shortening hooks and a guide bar. CE-marked lifting device for professional use.
474

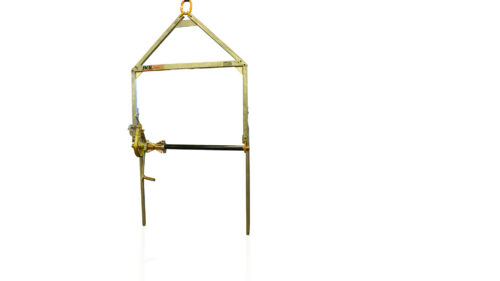

LFJ 24 rigid reel lifter
The LFJ 24 is a reel lifter with a rigid steel frame. Lifting is carried out from the reel axle in the same way as with the chain-based LF 24 lifter. Ground pins keep the lifter in place during pulling. The rigid frame also allows the use of an optional brake device.The sturdy hot-dip galvanized frame is durable and does not bend even under heavier use. Supplied with a bearing-mounted reel axle; the brake device is available as an accessory.
163

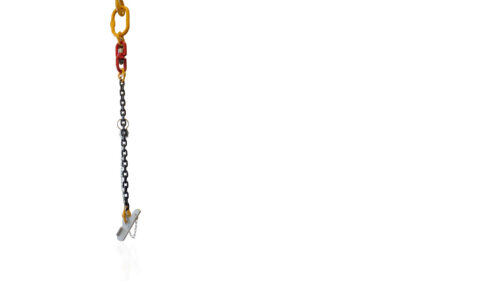

LS 80 reel lifting shoe
The LS 80 reel lifting shoe is a CE-approved lifting accessory for safe and efficient reel handling. It operates with a lever-grip mechanism that securely engages the inner edge of the reel during lifting.The shoe is inserted vertically through the reel eye and then automatically rotates into a horizontal position. As lifting begins, the shoe is pressed firmly against the reel flange, allowing the reel to be lifted safely and in a controlled manner.The LS 80 can be supplied with a swivel that allows the reel to be rotated during lifting. The set includes the lifting shoe, swivel and lifting chain. A version without swivel is also available (product code…
201

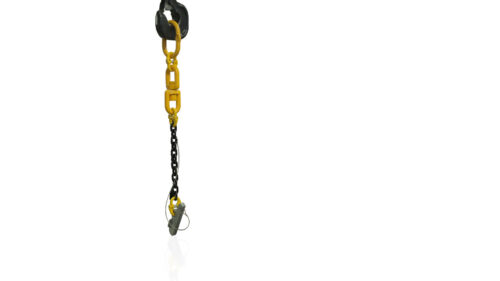

LS 100 reel lifting shoe
The LS 100 reel lifting shoe is designed for larger reels. The reel is lifted through its hole: the shoe is dropped into the opening in the reel flange, and when lifting begins it locks against the flange so the reel can be raised.The LS 100 can be equipped with a swivel that allows the reel to be rotated. The set includes the lifting shoe and lifting chain. It is available with a swivel (as pictured) or without one.CE-approved lifting accessory.
21
RL 24 reel flange lifter
The RL 24 reel flange lifter makes it easier to store reels close together. Lifting is done with lifting shoes placed in the reel holes. The lifter fits 75 mm, 104 mm and 132 mm reel centre holes, so the same lifter can be used with different reel sizes.Shortening hooks allow the lifting chains to be shortened, making lifting possible in tighter indoor spaces. Handling smaller reels is also easier thanks to the shortening hooks.
3120

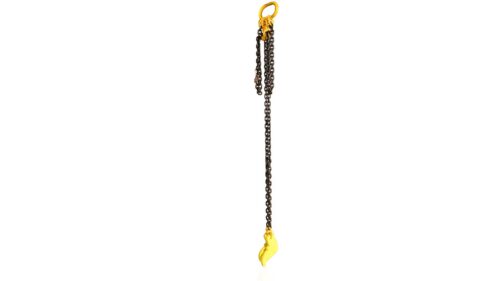

RL 30 reel flange lifter
The RL 30 reel flange lifter differs from the RL 24 mainly in its higher load capacity. The RL 30 makes it easier to store reels close together because the lifting shoes are easy to install even in tight spaces. Lifting is done with shoes placed in the reel holes.The lifter fits 75 mm, 104 mm and 132 mm reel centre holes, so the same lifter can be used with different reel sizes. Shortening hooks allow the lifting chains to be shortened for work in lower indoor spaces.
22

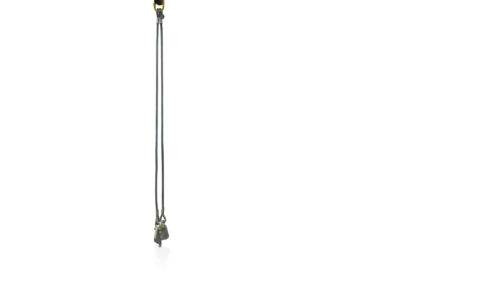

RLW 24 reel flange lifter
The RLW 24 reel flange lifter makes it easier to store reels close together. Lifting is done with hooks placed in the reel holes. The lifter fits 75 mm, 104 mm and 132 mm reel centre holes, so the same lifter can be used with different reel sizes.The lifter is made with coated Ø16 mm wire ropes, giving a total diameter of approximately Ø20 mm including the coating.CE-approved product.
2415

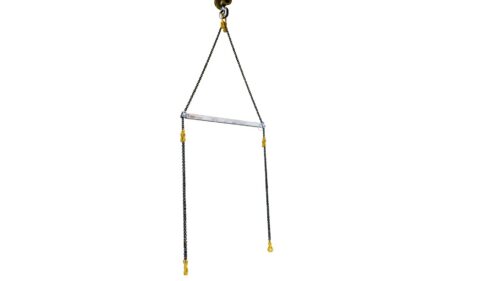

PMN 6000 2P substation lifter
The PMN 6000 2P is designed for lifting pad-mounted substations. The frame design saves chains, extending the service life of the lifter. The hot-dip galvanized steel crossbars are highly durable and corrosion-resistant.The lifter has two lifting points. A four-point model, PMN 6000 4P, is also available.
2478

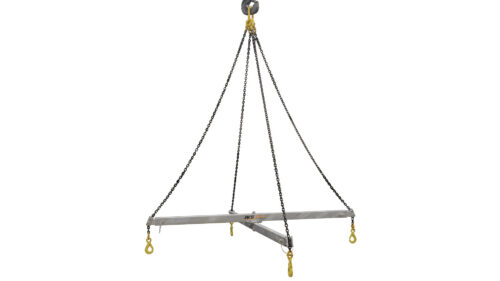

PMN 6000 4P substation lifter
The PMN 6000 4P is a high-quality and reliable substation lifter specially designed for the safe and efficient lifting of pad-mounted substations on site. It is ideal for demanding professional use where long service life, safety and ease of use are essential.Its four separate lifting points each have a locking hook that ensures secure and stable attachment of lifting slings or chains. The innovative frame design reduces chain wear and extends the service life of the device. The hot-dip galvanized steel crossbars provide excellent resistance to corrosion and changing weather conditions.CE-approved lifting equipment.
1981

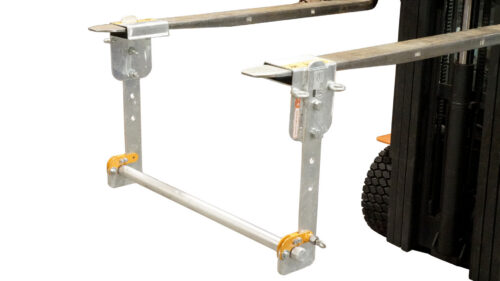

JKS FR 12 forklift reel rack
The JKS FR 12 forklift reel rack is a durable and efficient solution for moving and handling cable reels with a forklift. The rack is designed especially for K4–K12 reels and features mechanical height adjustment for larger reels. The non-bearing Ø50 mm reel axle ensures easy operation and reliable performance.An excellent choice for industrial, construction and warehouse environments where safe and fast reel handling is required.
