Category: Winches
1884

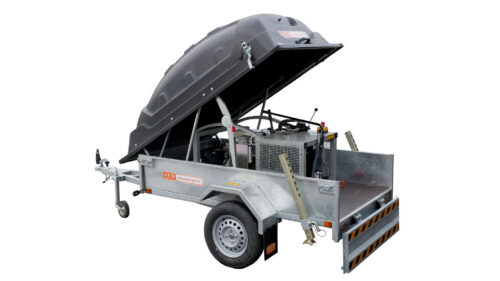

JKS WT 750 winch trailer
The JKS WT 750 winch trailer can pull either a tow rope or a steel cable. The pulling force is limited to 1500 kg, but when needed it can be increased up to 2000 kg — so the pulling power never runs out. The actual pulling in the WT 750 is done with the CBW 1500 winch mounted directly on the trailer frame. If necessary, the winch can be detached from the trailer and moved to the edge of the trench, where it works as an independent unit. The product is manufactured in Finland, ensuring high quality and reliability. The WT 750 comes as standard with an LED work light,…
533

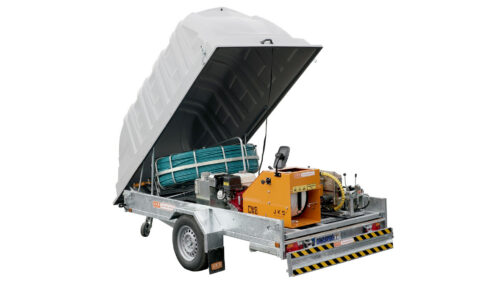

JKS pipe snake trailer PST 1000
The JKS pipe snake trailer PST 1000 makes installing underground cables easy. All you need to do is push the installation rod into the pipe, fasten the cable to the rod and pull the rod out of the pipe. If additional power is required, the trailer can be equipped with a winch. With the help of the JKS pipe snake trailer, ground cable installations can be carried out conclusively easier. The fibreglass rod is pushed into the pipe with the help of the pulling and pushing device, then the cable is attached to the rod and the rod is pulled back — the cable is pulled into the pipe. Pulling…
206

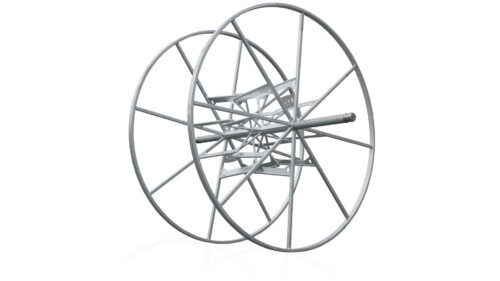

JKS split steel reel 75-2300
Large hot-dip galvanized steel reel for bundling old cables and lines or for unwrapping coils. The old material is wound onto the reel and tied into a bundle, after which the reel is opened in the middle — this way old cables can be conveniently bundled neatly. The reel can also be used for unwinding water pipe bundles. The pipe bundle is placed between the two reel halves and the whole package is lifted onto a reel trolley, gantry or hoist. After this, it is easy to disassemble the pipe spool as the spool rotates on a bearing-mounted shaft. The outer diameter of this reel is 2300 mm and the…
111

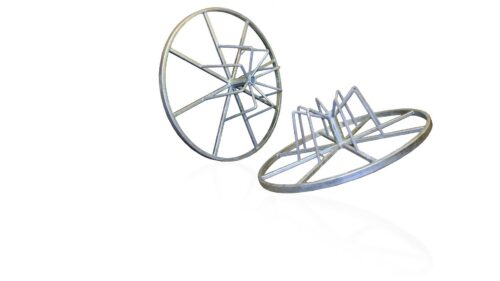

Split steel reel 60-1400
Hot galvanized steel reel for wrapping up old cables. The old cable is wrapped around the reel, then the reel must be split down the middle — as a result you get old cables in a nice package. The reel fits a 60 mm reel axle, and on request also a 75 mm axle. For use with JKS cable trailers and other cable working equipment.
1982

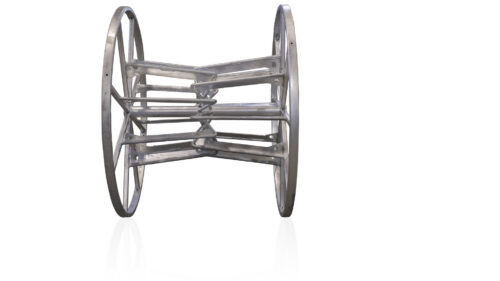

Split steel reel EW 60-1400
Hot galvanized and steel constructed wider reel for wrapping up old cables. The old cable is wrapped around the reel, then the reel must be split down the middle — as a result you get old cables in a nice package. The EW model is wider than the 60-1400 model (1100 mm), which allows larger cable packages to be wound. The reel fits a 60 mm reel axle, and on request also a 75 mm axle.
2257

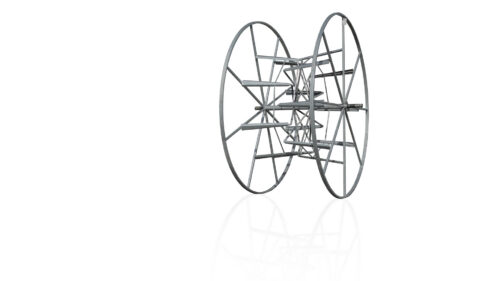

Split XL-steel reel 60-2800
Extra-large and durable hot-dip galvanized steel reel for bundling cables and unwinding pipe coils. Designed for professional use, the reel makes it easy to bundle cables neatly and allows for effortless unwinding at construction sites, warehouses or recycling facilities. The reel structure enables cables or pipes to be placed between the two halves of the reel, making handling smooth with lifting equipment or reel trolleys. The galvanized steel ensures long-lasting durability and weather resistance, even in demanding conditions. The solution is ideal for electrical contractors, industrial applications and the recycling sector, where clean and efficient cable and pipe handling saves time and improves work safety. The reel fits a 60…
5400

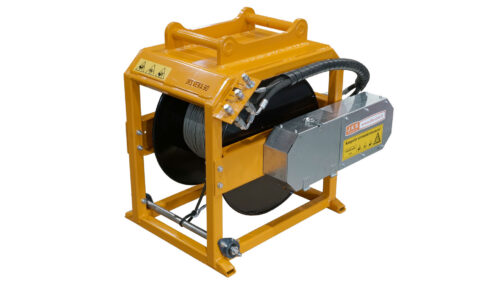

JKS VEKA 90 cable pulling tool
The JKS VEKA 90 cable puller is suitable for work where the cable must be routed into a trench or pipe. The device is mounted on the excavator boom and is powered by the excavator hydraulics. VEKA 90 is an efficient and fast device that allows you to deal with the contract efficiently, which increases the economic benefits. The device has been designed with occupational safety in mind, so the risk of injury is reduced. The machine is available with different tool holders, for example S45 or S60. The customer can choose between 25 mm pulling tape, 6 mm steel wire and 6 mm pulling rope. Breaking strengths are 2500–3200…
