Lifting and moving equipment

LS 100 reel lifting shoe

LS 100 reel lifting shoe
Reel lifters
Max reel weight 5000 kg
Reel hole 100 mm
Own weight 15 kg
Electrical number 6431002
Product code 201
request_quote Request a quote
table_chart Technical data
support_agent
Technical advisor info@nostromo.ee +372 5276617

precision_manufacturing Product description

The LS 100 reel lifting shoe is designed for larger reels. The reel is lifted through its hole: the shoe is dropped into the opening in the reel flange, and when lifting begins it locks against the flange so the reel can be raised.

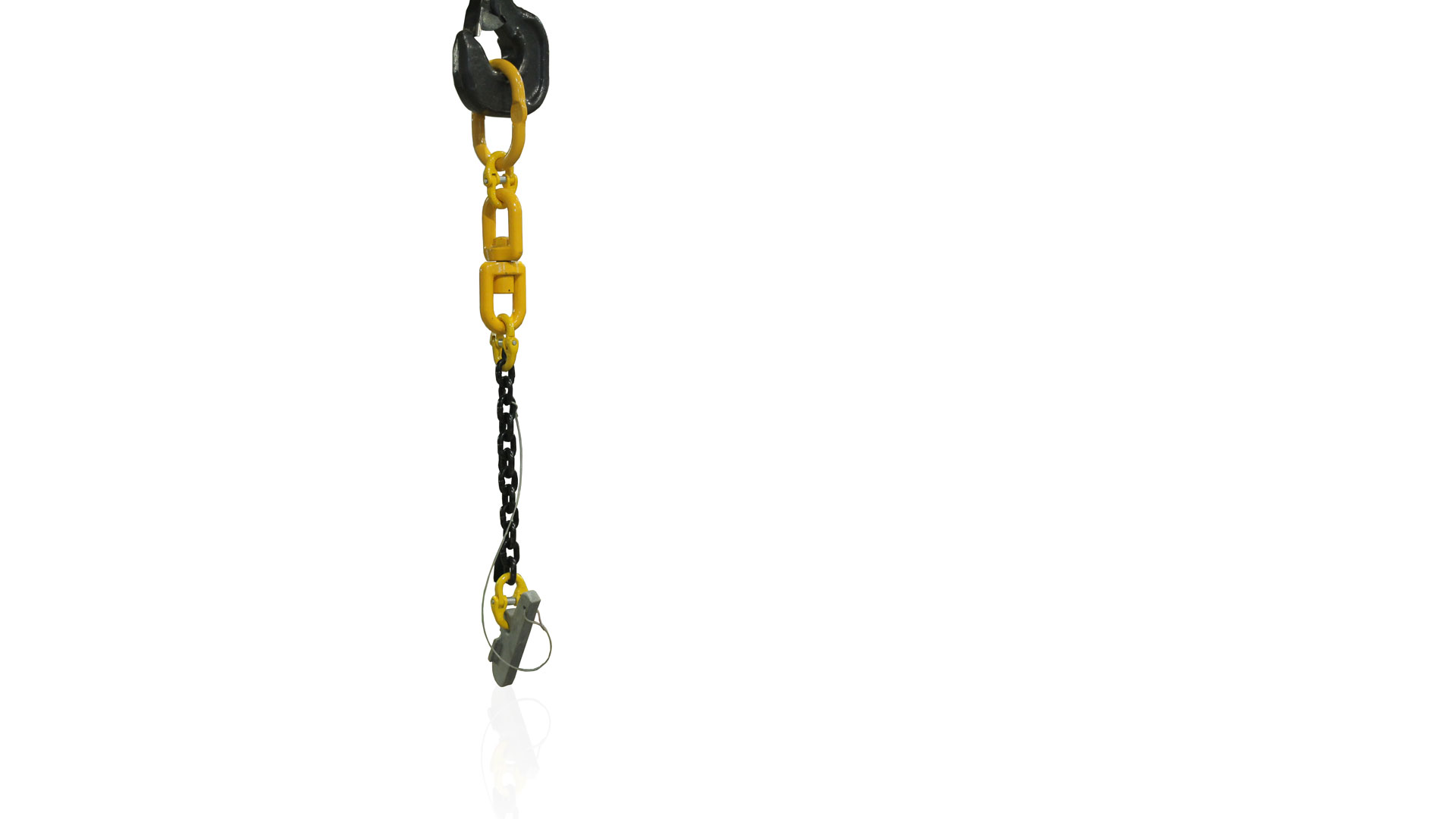

The LS 100 can be equipped with a swivel that allows the reel to be rotated. The set includes the lifting shoe and lifting chain. It is available with a swivel (as pictured) or without one.

CE-approved lifting accessory.
