Lifting and moving equipment

RL 24 reel flange lifter

RL 24 reel flange lifter
Reel lifters
Max reel weight 3500 kg
Max reel Ø 2400 mm
Max reel width 1200 mm
Fits reel holes 75 mm, 104 mm and 132 mm
Electrical number 6431072
Product code 21
request_quote Request a quote
table_chart Technical data
support_agent
Technical advisor info@nostromo.ee +372 5276617

precision_manufacturing Product description

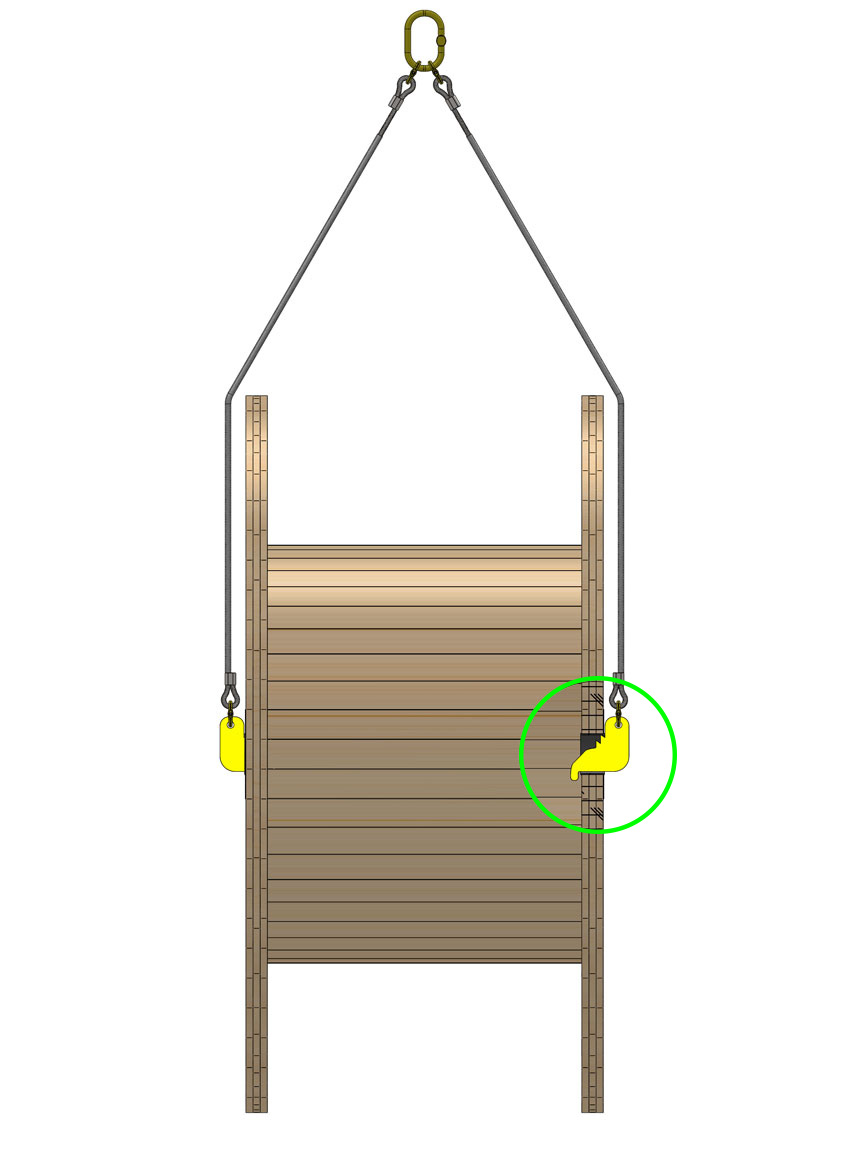

The RL 24 reel flange lifter makes it easier to store reels close together. Lifting is done with lifting shoes placed in the reel holes. The lifter fits 75 mm, 104 mm and 132 mm reel centre holes, so the same lifter can be used with different reel sizes.

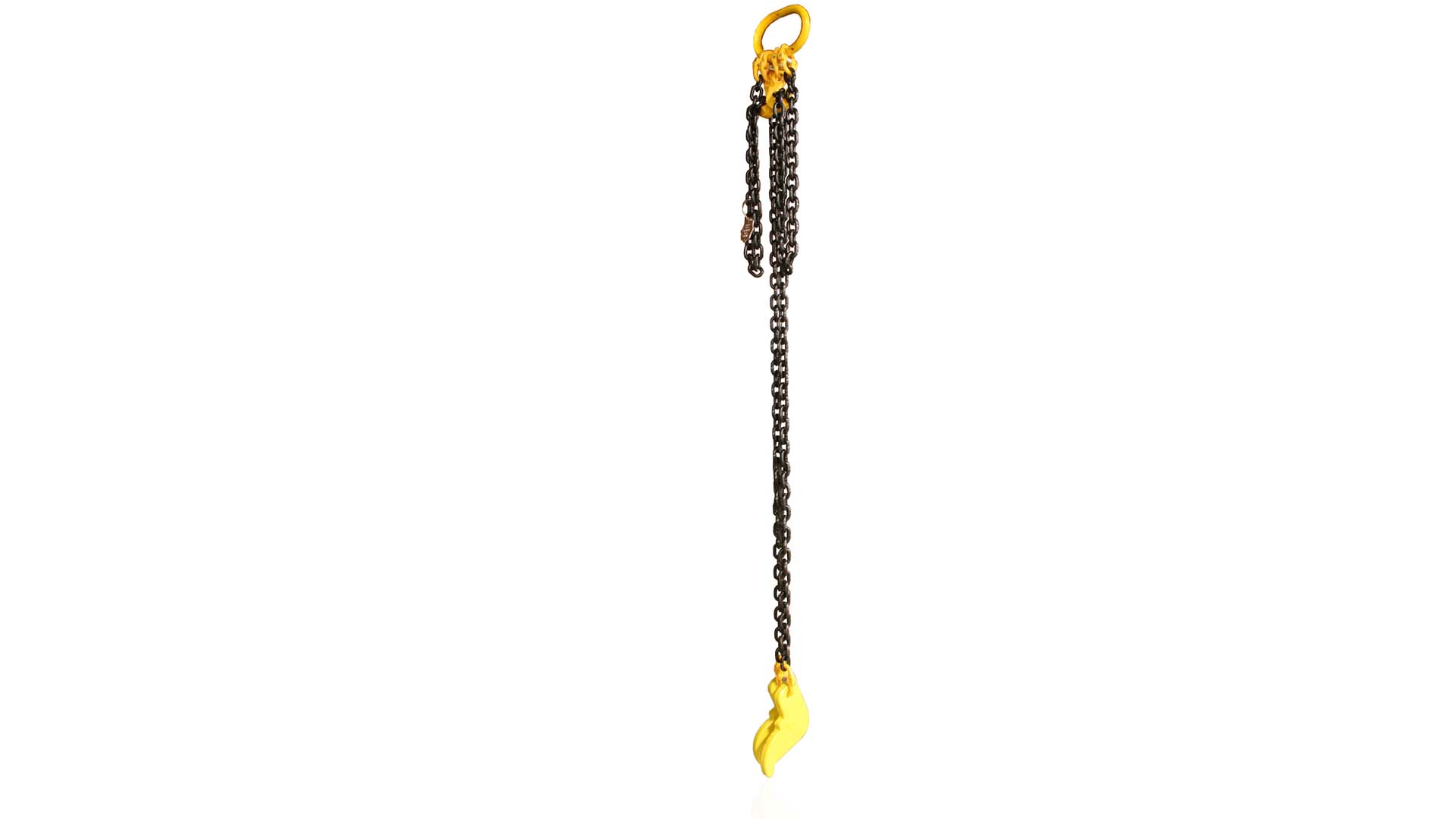

Shortening hooks allow the lifting chains to be shortened, making lifting possible in tighter indoor spaces. Handling smaller reels is also easier thanks to the shortening hooks.
