NOSTROMO
inventory_2 Product code: 22
Lifting and moving equipment

RLW 24 reel flange lifter

RLW 24 reel flange lifter
Reel lifters
Max reel weight 3500 kg
Max reel Ø 2400 mm
Max reel width 1200 mm
Fits reel holes 75 mm, 104 mm and 132 mm
Wire rope total Ø ~20 mm
Product code 22
request_quote Request a quote
table_chart Technical data
support_agent
Technical advisor info@nostromo.ee +372 5276617

precision_manufacturing Product description

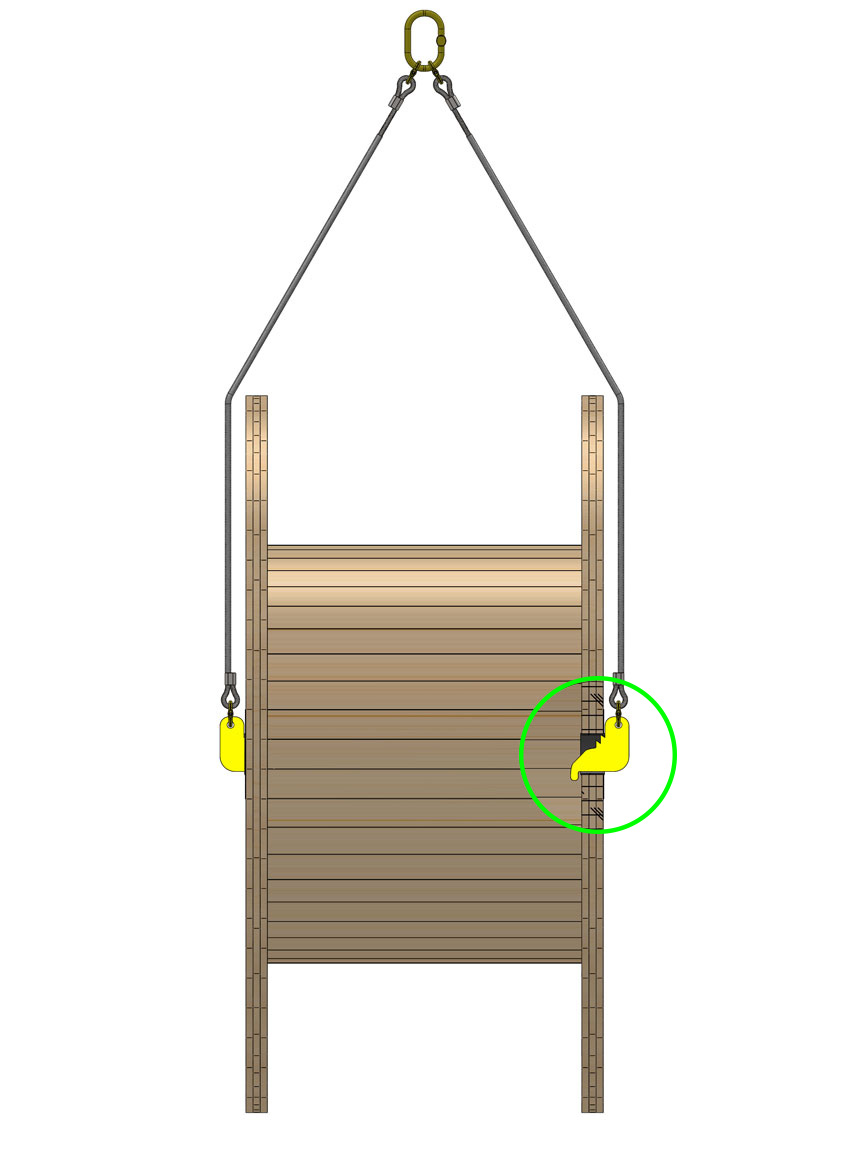

The RLW 24 reel flange lifter makes it easier to store reels close together. Lifting is done with hooks placed in the reel holes. The lifter fits 75 mm, 104 mm and 132 mm reel centre holes, so the same lifter can be used with different reel sizes.

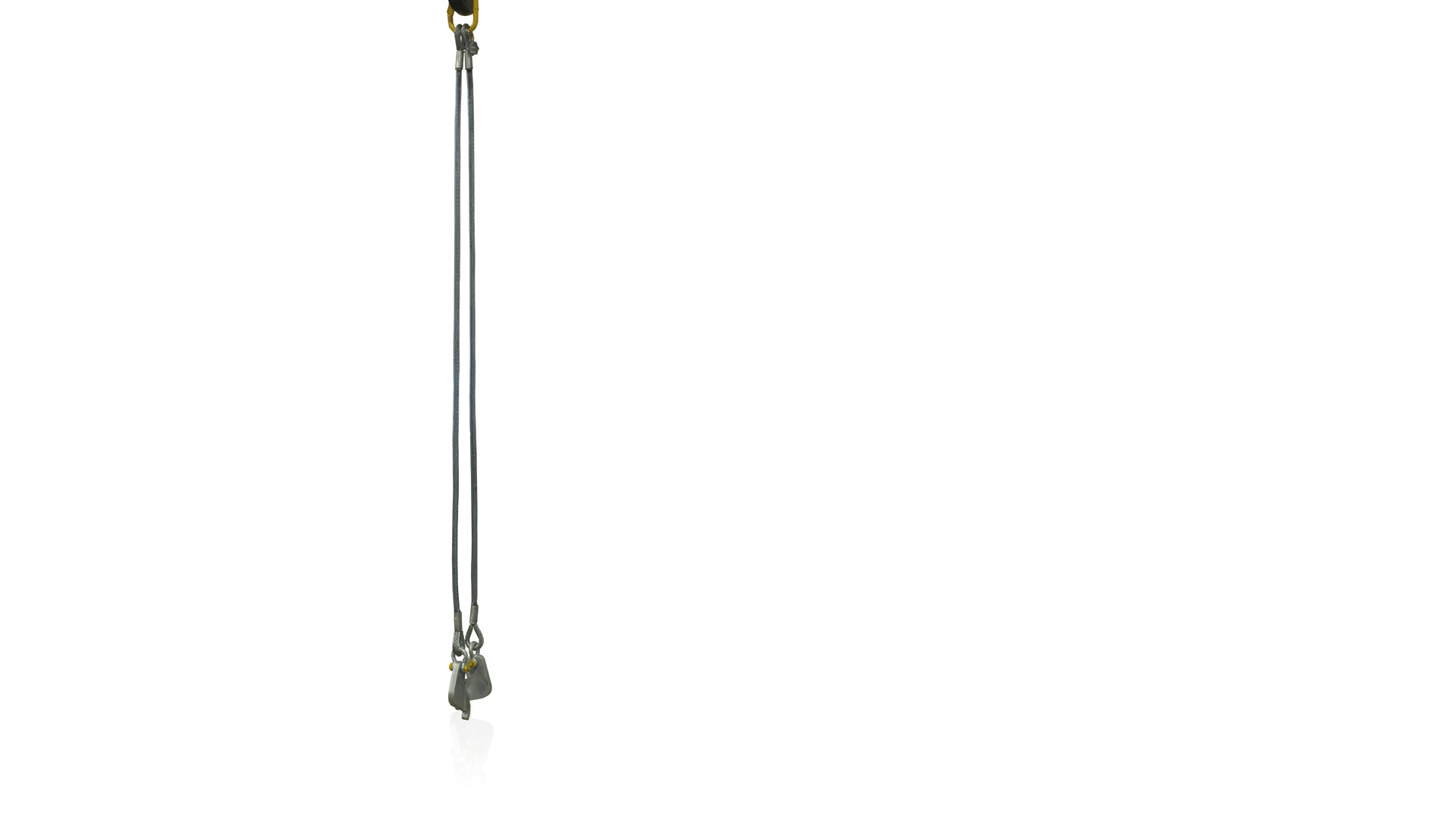

The lifter is made with coated Ø16 mm wire ropes, giving a total diameter of approximately Ø20 mm including the coating.

CE-approved product.

B2B quote request and delivery time

Request a quote: RLW 24 reel flange lifter

Send your inquiry directly to the Nostromo OÜ technical team. We will reply with a precise quotation and delivery schedule within 1 business day.

check_box Official representation and factory warranty
check_box Spare and wear parts available from the Tallinn warehouse
check_box Leasing and instalment options available
Send inquiry Product code: 22
