ECO-Skate i60D load moving system

Load moving skates ECO-Skate®

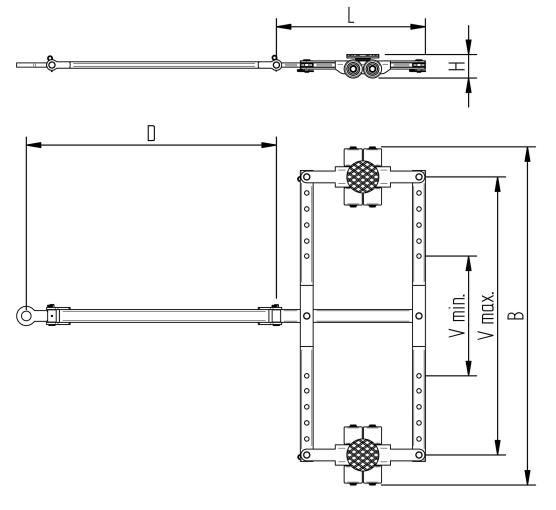

Dimension drawing: ECO-Skate i60D load moving system

table_chart Technical data

Product code 10 060 00 30

Wheel Material PU, ST, 93 Shore A

Max. Capacity 2 x 3000 daN

Number of Wheels 2 x 4

Load Area Ø 150 mm

Dimensions 717 x 1581 x 110 mm

Steering D = 1170 mm, V = 560 - 1300 mm

Weight 51 kg

Roller Surface Pressure 11,3 x 78 = 879 mm²; ▼ 8,4 MPa

Loaded Area 70,3 cm²

Traction 180 daN*

Starting Resistance 300 daN*

tire_repair Equipped with wheel

Wheel Part No. 11 085 00 14

Wheel Material PU, ST, 93 Shore A

Wheel Dimensions Ø85x87 - Ø25 mm

Wheel Surface Pressure 11,3 x 78 = 879 mm²; ▼ 8,4 MPa

Wheel Capacity 750 daN

V max 2 km/h

precision_manufacturing Product description

ECO-Skate® i-Series

Heavy-duty load moving system for the professional indoor heavy load transport on clean, smooth and level floors, incl. alignment bars, pulling bar with pulling eye, turntable with anti-slip rubber pad and high-quality HTS 3-component polyurethane wheels, which are abrasion-resistant, cut-resistant and non-marking and suitable for all smooth and level floors with slight unevenness. In combination with a S, DUO or two ROTO trolleys with the same installation height, these trolleys form a complete system with 4 load points. Please note the steering angle of max. 45 °. If the steering angle of the skate system is fully utilized, there must be no additional steering angle of the traction unit (see operating instructions).

Alignment bars, turntable with anti-slip rubber pad and pulling bar with pulling eye.
3-component polyurethane wheels: abrasion- and cut-resistant, non-marking.
Complete system with 4 load points, steering angle up to 45°.
Suitable for smooth and slightly uneven floors.
