ECO-Skate i150L load moving system

Load moving skates ECO-Skate®

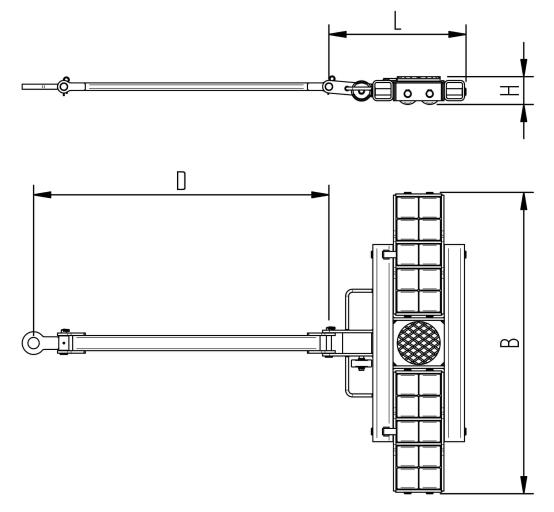

Dimension drawing: ECO-Skate i150L load moving system

table_chart Technical data

Product code 10 150 00 10

Wheel Material PU, ST, 93 Shore A

Max. Capacity 15000 daN

Number of Wheels 20

Load Area Ø 170 mm

Dimensions 568 x 1192 x 110 mm

Steering D = 1170 mm

Weight 99 kg

Roller Surface Pressure 11,3 x 78 = 879 mm²; ▼ 8,4 MPa

Loaded Area 175,8 cm²

Traction 450 daN*

Starting Resistance 750 daN*

tire_repair Equipped with wheel

Wheel Part No. 11 085 00 14

Wheel Material PU, ST, 93 Shore A

Wheel Dimensions Ø85x87 - Ø25 mm

Wheel Surface Pressure 11,3 x 78 = 879 mm²; ▼ 8,4 MPa

Wheel Capacity 750 daN

V max 2 km/h

precision_manufacturing Product description

ECO-Skate® i-Series

Heavy-duty load moving system for the professional indoor heavy load transport on clean, smooth and level floors, incl. pulling bar with grab handle or pulling eye, turntable with anti-slip rubber pad and high-quality 3-component polyurethane wheels, which are abrasion-resistant, cut-resistant and non-marking and suitable for all smooth and level floors with slight unevenness. In combination with an S, DUO or two ROTO skates with the same installation height it forms a safe overall system with 3 load points.

Turntable with anti-slip rubber pad and pulling bar with grab handle or pulling eye.
3-component polyurethane wheels: abrasion- and cut-resistant, non-marking.
Suitable for smooth and slightly uneven floors.
Can be combined with S, DUO or two ROTO skates of the same installation height — a safe 3-load-point system.
