ECO-Skate i120S load moving system

Load moving skates ECO-Skate®

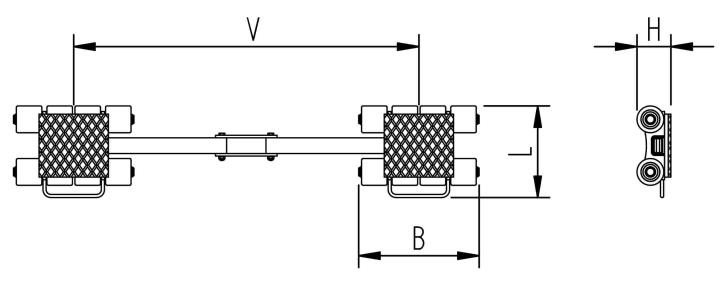

Dimension drawing: ECO-Skate i120S load moving system

table_chart Technical data

Product code 10 120 00 20

Wheel Material PU, ST, 93 Shore A

Max. Capacity 2 x 6000 daN

Number of Wheels 2 x 8

Load Area 200 x 220 mm

Dimensions 291 x 382 x 110 mm

Steering V = 560 - 1095 mm

Weight 45 kg

Roller Surface Pressure 11,3 x 78 = 879 mm²; ▼ 8,4 MPa

Loaded Area 140,6 cm²

Traction 360 daN*

Starting Resistance 600 daN*

tire_repair Equipped with wheel

Wheel Part No. 11 085 00 14

Wheel Material PU, ST, 93 Shore A

Wheel Dimensions Ø85x87 - Ø25 mm

Wheel Surface Pressure 11,3 x 78 = 879 mm²; ▼ 8,4 MPa

Wheel Capacity 750 daN

V max 2 km/h

precision_manufacturing Product description

ECO-Skate® i-Series

Heavy-duty load moving system for the professional indoor heavy load transport on clean, smooth and level floors. Design incl. alignment bars, anti-slip rubber pad and high-quality HTS 3-component polyurethane wheels, which are abrasion-resistant, cut-resistant and non-marking and suitable for all smooth and level floors with slight unevenness. In combination with a L- or possibly ROTO skates with the same installation height, it forms a safe overall system with 3 load points. With DUO or two ROTO load moving systems, observe the operating instructions for 4-point supports.

Alignment bars and anti-slip rubber pad.
Adjustable width according to the load (V).
3-component polyurethane wheels: abrasion- and cut-resistant, non-marking.
Combines with an L or ROTO skate of the same installation height — 3 load points; with DUO or two ROTO systems, 4-point support.
