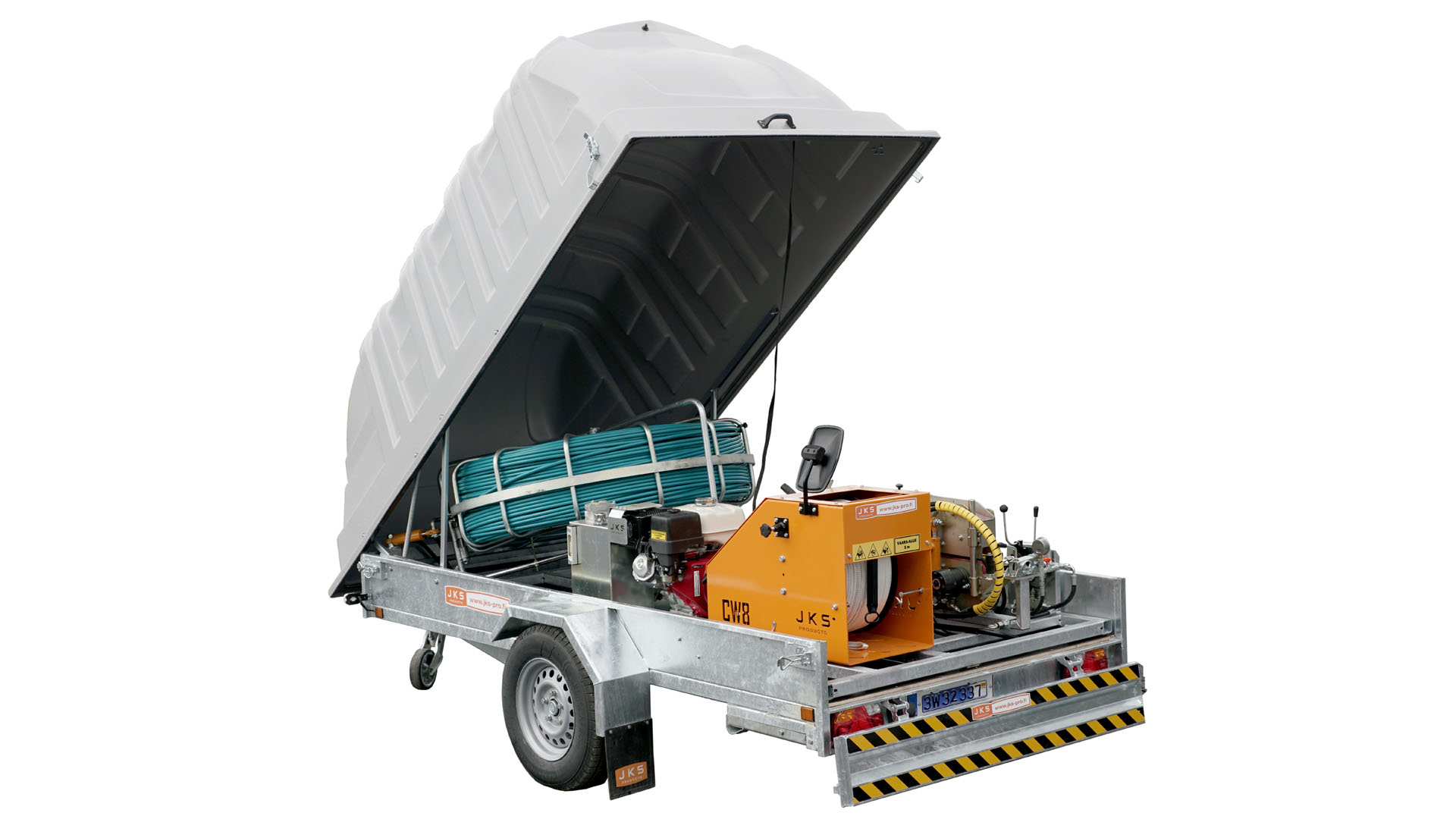

JKS pipe snake trailer PST 1000

The JKS pipe snake trailer PST 1000 makes installing underground cables easy. All you need to do is push the installation rod into the pipe, fasten the cable to the rod and pull the rod out of the pipe. If additional power is required, the trailer can be equipped with a winch.

With the help of the JKS pipe snake trailer, ground cable installations can be carried out conclusively easier. The fibreglass rod is pushed into the pipe with the help of the pulling and pushing device, then the cable is attached to the rod and the rod is pulled back — the cable is pulled into the pipe.

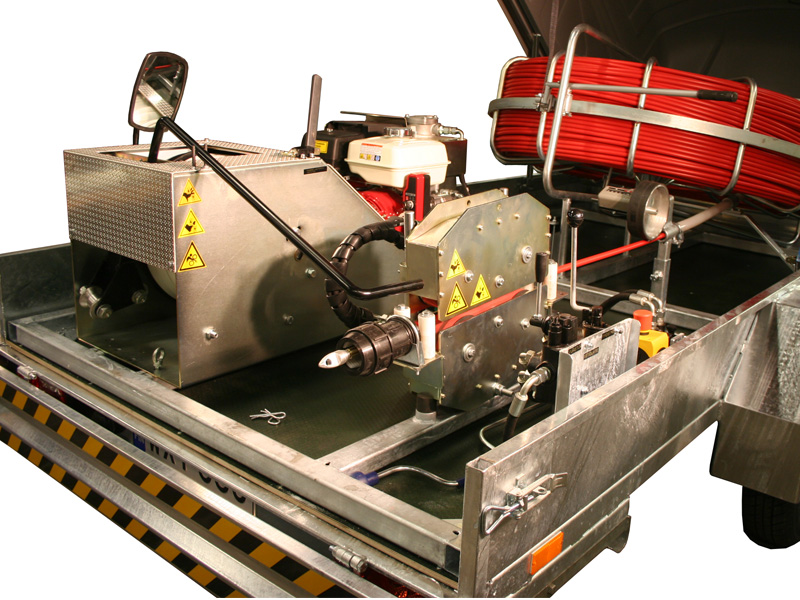

Pulling is operated with the efficient pulling and pushing device PPD 402. If even more power is required, the PST 1000 can be equipped with the CW8 winch.

Standard:
Hot galvanized JKS steel frame, 12V LED lights, overrun brakes with automatic reverse and parking brake, suspended axle, adjustable jockey wheel, adjustable back supports, LED work light, PPD 402 pulling and pushing device, Honda HP9 engine and hydraulic machinery, emergency stop switch, guide pipes.

Accessories:
Electric start, winch + pulling tape, guide pipe set, automatic reel brake.
