ECO-Skate RFN80 load moving system

Mounting plate wheels ECO-Skate®

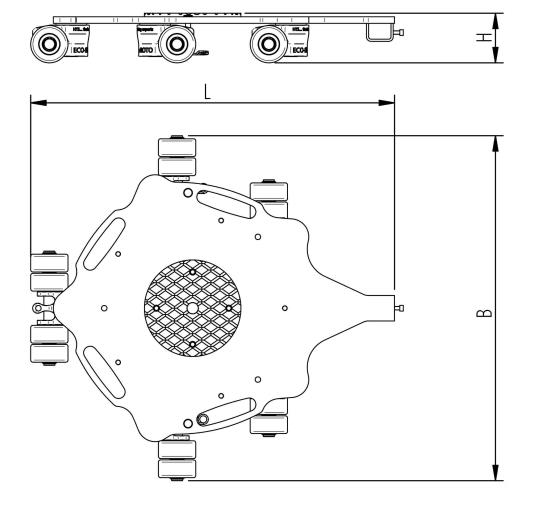

Dimension drawing: ECO-Skate RFN80 load moving system

table_chart Technical data

Product code 10 080 09 41

Wheel Material NY, 80 Shore D

Max. Capacity 8000 daN

Number of Wheels 20

Load Area Ø 220 mm

Dimensions 829 x 786 x 110 mm

Steering D = 1170 mm, V = 922 - 1940 mm

Weight 59 kg

Roller Surface Pressure 6,0 x 40 = 240 mm²; ▼ 20,8 MPa

Loaded Area 48,0 cm²

Traction 200 daN*

Starting Resistance 250 daN*

tire_repair Equipped with wheel

Wheel Part No. 11 085 11 34

Wheel Material NY, 80 Shore D

Wheel Dimensions Ø85x43,5 - Ø25 mm

Wheel Surface Pressure 6,0 x 40 = 240 mm²; ▼ 20,8 MPa

Wheel Capacity 500 daN

V max 2 km/h

precision_manufacturing Product description

ECO-Skate® ROTO

Heavy-duty load moving system (360°) for the professional indoor heavy load transport on clean, smooth and level floors, incl. individually rotatable high-quality HTS wheels (abrasion-resistant, non-marking), anti slip rubber pad and attachment for alignment bars or pulling bars in various versions. Multifunctional and flexible due to the ability to block the wheel boxes with pins. It can be used like a fixed rear skate, equipped with an additional turntable like a steerable skate. In combination with an L-, S- or DUO load moving system with the same installation height, it forms a safe overall system with 3 load points (with secured load also as a 4-point system if the operating instructions are observed).

Individually rotatable high-quality HTS wheels with pin locking.
Attachments for alignment and pulling bars in various versions.
Anti-slip rubber pad for load support.
Usable as a fixed rear skate or as a steerable skate with an additional turntable.
Compatible with L, S and DUO systems of the same installation height — a safe 3-load-point system.
