ECO-Skate RM11 load moving system

Mounting plate wheels ECO-Skate®

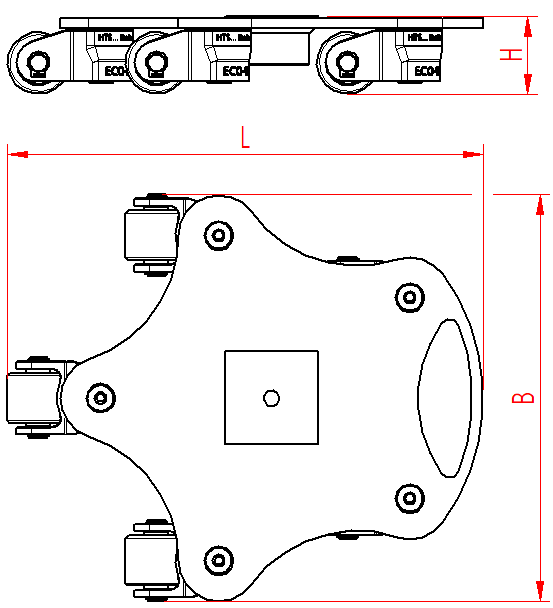

Dimension drawing: ECO-Skate RM11 load moving system

table_chart Technical data

Product code 10.011.07.40

Wheel Material PU

Max. Capacity 1100 daN

Number of Wheels 5

Load Area 75 x 75 mm

Dimensions 383 x 372 x 60 mm

Weight 10,3 kg

Loaded Area 10,2 cm²

Traction 45,8 daN*

Starting Resistance 76,4 daN*

Max Speed 2 km/h

tire_repair Equipped with wheel

Wheel Part No. 11.050.01.42

Wheel Material PU

Wheel Dimensions Ø50 x 46 – Ø15 mm

Wheel Surface Pressure 5,5 x 37 = 204 mm²; ▼ 15,0 MPa

precision_manufacturing Product description

ECO-Skate® ROTO MINI

Heavy-duty transport skate (360°) for professional in-house movement of heavy loads on clean and level floors. Equipped with individually rotatable high-quality HTS 3-component polyurethane rollers (abrasion-resistant, non-marking, cut-resistant) and a non-slip load pad. In combination with an L, S or DUO system of the same installation height, these skates form a safe overall system with 3-point support (with appropriate securing and observance of the operating instructions, conditionally also with 4-point support).

Individually rotatable HTS PU rollers (abrasion- and cut-resistant, non-marking).
Non-slip pad for load support.
ROTO MINI — compact and light (10.3 kg), capacity 1100 daN.
Compatible with L, S and DUO systems of the same installation height.
